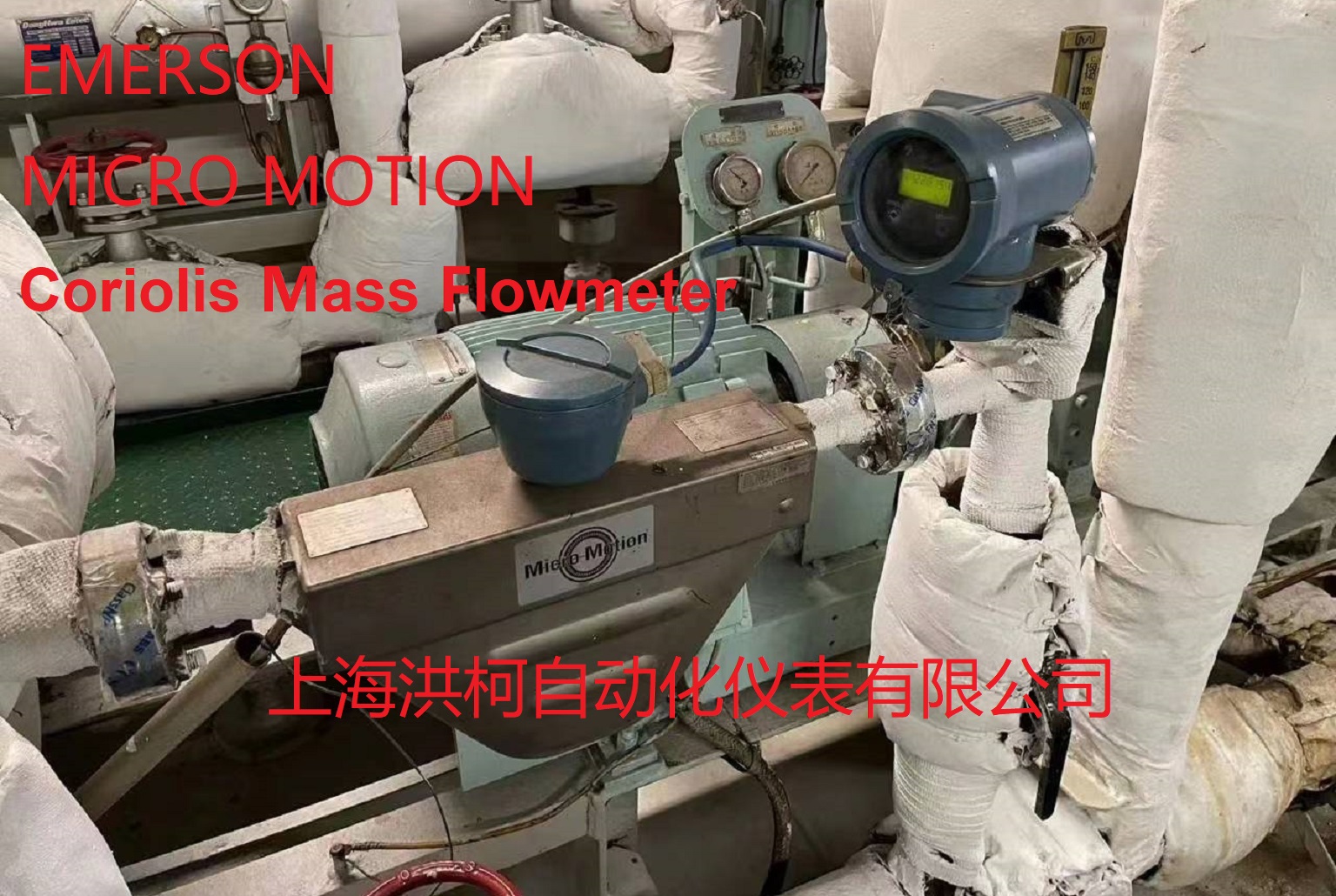

Fuel Oil Flowmeters, Coriolis Mass Flowmeter，质量流量计，科里奥利质量流量计, EMERSON, Micro Motion Inc. USA, Coriolis Mass Flowmeter, FLOW SENSOR MODEL F100S, F200S, F300S, TRANSMITTER MODEL 1700, 2700
国产替换质量流量计，总长度、法兰尺寸、流量范围、耐温、耐压、输出信号，供电电源，防爆等级等功能参数都一致，可以完全替换。
MODEL: AKLZ series Coriolis Mass Flowmeter，Maker： Shanghai A.K. Instruments CO,. LTD (SHAKIC)
原制造商：
--EMERSON
--MICRO MOTION
可完全替换口径型号MODEL/TYPE部分举例:
SENSOR model: F300S391CRHZEZZZZ
SENSOR model: F200S418CRAZEZZZZ，TRANSMITTER model：1700C12ABZEZZZPK
SENSOR model: F200S382CRAZEZ1ZZ，TRANSMITTER model：1700B12ABZEZZZ
SENSOR model: F200S382CRAZEZ1ZZ, TRANSMITTER model：1700B12ABZEZZZ
SENSOR model: F200S368C2EZEZZZZ, TRANSMITTER model：1700R12AEZEZZZ
SENSOR model: F200S312CRANNZZZZ
SENSOR model: F100S128CSAZEZZZZ，TRANSMITTER model：1700R12AEZEZZZ
SENSOR model: F100S128CRAZMZZZZ，TRANSMITTER model：1700C12ABFMZZZ
SENSOR model: F100S128CQFZEZZZZ，TRANSMITTER model：2700R12AEZEMZZ
SENSOR model: F100S128CRHZEZZZZ，TRANSMITTER model：2700C12AFZEEZZX
SENSOR model: F100S139C2EZEZ1ZZ，TRANSMITTER model：1700R12AEMEZZZZ
SENSOR model: F100S139CCAZEZZZZ，TRANSMITTER model：1700R12AEZEZZZ
SENSOR model: F100S139CRAZEZZZZ，TRANSMITTER model：1700C12ABFEZZZPK
SENSOR model: F100S139CQFZEZZZZ，TRANSMITTER model：2700R12AEZEMZZ
SENSOR model: F100S179CQENEZZZZ，TRANSMITTER model：1700R12AEMEZZZ
SENSOR model: F100S179CSJZEZZZZ，TRANSMITTER model：2700C12CGZEZZZ
SENSOR model: F050S122CRAZEZZZZ，TRANSMITTER model：1700C12ABFEZZZPK
SENSOR model: F050S122C2EZEZ1ZZ，TRANSMITTER model：2700R12AEZEMZZ
SENSOR model: F050S116CRHZEZZZZ，TRANSMITTER model：1700C12AFFEZZZ
SENSOR model: F050S122CRAZEZZZZ，TRANSMITTER model：1700C12ABFEZZZ
SENSOR model: F050S122CRAZEZZZZ，TRANSMITTER model：2700C12BBZEZZZ
SENSOR model: F050S122C2EZEZ1ZZ，TRANSMITTER model：1700R12AEMEZZZ
SENSOR model: F050S131CRHAEZZZZ，TRANSMITTER model：2700R12AEZEMZZ
SENSOR model: F050S172CQFNEZZZZ，TRANSMITTER model：1700R12AEMEZZZ
Maker: Shanghai A.K. Instruments Co., LTD (SHAKIC)
These oil flowmeters are positive displacement type flow meters which are used in a wide variety of applications including measuring of boiler fuel oil and diesel oil, as well as for transactions of kerosene, light oil and heavy oil.
Gear Type 齿轮型
This flowmeter employs a gear-type rotor for small-volume flow of low-viscosity oil in heat control applications, etc. It can be used without modification to measure kerosene, light oil, or heavy oil. Measuring accuracy is ±0.5 %.
Roots Type
This flowmeter is widely used for transaction and in other applications. The roots rotor rotates without physical contact, resulting in extremely low pressure loss. In addition, its accuracy remains virtually unchanged over a long period of time.
Standard Specifications:
Accuracy: ±0.5%
Max working pressure: 10 kgf/cm2
Hydraulic test pressure: 20 kgf/cm2
Max working temperature: 50℃ for kerosene and light oil, 100℃ for heavy oil
Flange rating: JIS 10 kgf/cm2 FF
Material:
--Body: Cast Iron;
--Rotor: Gear type: Bronze or phenol resin; Roots type: Aluminium alloy casting
Counter unit: Integrating pointer and integrating counter (a reset counter is also available.)
Electrical Transmitter unit:
--Transmitter: Reed switch (S) : Microswitch (M)
--Power supply: AC100V 50/60Hz as standand
--Number of pulse: 0-5 PPS
--Output signal: ON-OFF contact
--Transmission cable: 2-core cabtyre cable
--Flow direction: Right→Left
Specifications for each type-1:
Gear type:
--Bore: 15mm,Pointer: 1 ltr/rev, Integrating counter Number of digits:7, Minimum unit 1 ltr
--Bore: 20mm,Pointer: 1 ltr/rev, Integrating counter Number of digits:7, Minimum unit 1 ltr
--Bore: 25mm,Pointer: 10 ltr/rev, Integrating counter Number of digits:7, Minimum unit 10 ltr
Roots type
--Bore: 40mm,Pointer: 10 ltr/rev, Integrating counter Number of digits:7, Minimum unit 10 ltr
--Bore: 50mm,Pointer: 10 ltr/rev, Integrating counter Number of digits:7, Minimum unit 10 ltr
--Bore: 80mm,Pointer: 100 ltr/rev, Integrating counter Number of digits:7, Minimum unit 100 ltr
Specifications for each type-2:
Gear type, Type of Transmitter: Reed Switch, Accuracy : =0.5%
--Bore:15mm, Fluid Viscosity: Kerosene. Light oil 1.2-3CP, Normal operation Flow range 10-200ltr/h; A heavy oil 10 cP, Normal operation Flow range 5-200 ltr/h
--Bore:20mm, Fluid Viscosity: Kerosene. Light oil 1.2-3CP, Normal operation Flow range 40-1250 ltr/h; A heavy oil 10 cP, Normal operation Flow range 20-1250 ltr/h
--Bore:25mm, Fluid Viscosity: Kerosene. Light oil 1.2-3CP, Normal operation Flow range 150-3000 ltr/h; A heavy oil 10 cP, Normal operation Flow range 50-3000 ltr/h
Roots type, Type of Transmitter: Micro switch, Accuracy : =0.5%
--Bore:40mm, Fluid Viscosity: Kerosene. Light oil 1.2-3CP, Normal operation Flow range Intermittent 800-6000 ltr/h, Continuous 100-7000 ltr/h; A heavy oil 10 cP, Normal operation Flow range Intermittent 800-6000 ltr/h, Continuous 100-7000 ltr/h
--Bore:50mm, Fluid Viscosity: Kerosene. Light oil 1.2-3CP, Normal operation Flow range Intermittent 800-4500 ltr/h, Continuous 100-6000 ltr/h; A heavy oil 10 cP, Normal operation Flow range Intermittent 800-4500 ltr/h, Continuous 100-6000 ltr/h
--Bore:80mm, Fluid Viscosity: Kerosene. Light oil 1.2-3CP, Max Flow range 7000 ltr/h; A heavy oil 10 cP, Max 8000 ltr/h
Dimension table：
Gear type:
--Bore: 15mm,Flange dimensions: OD=95mm, L=130mm, A1=-, A2=181mm, Approx. Weight 6.0kg
--Bore:20mm,Flange dimensions: OD=100mm, L=170mm, A1=-, A2=176mm, Approx. Weight 7.0kg
--Bore:25mm,Flange dimensions: OD=125mm, L=200mm, A1=-, A2=187mm, Approx. Weight 10.0kg
Roots type:
--Bore: 40mm,Flange dimensions: OD=140mm, L=200mm, A1=77mm, A2=177mm, Approx. Weight 17.0kg
--Bore:50mm,Flange dimensions: OD=155mm, L=250mm, A1=99mm, A2=190mm, Approx. Weight 20.0kg
--Bore:50mm,Flange dimensions: OD=185mm, L=300mm, A1=300mm, A2=206mm, Approx. Weight 40.0kg
Precautions during piping and operation
Guide of how to order
When ordering, please specify the following points,
How to order : 75 - 25 - 31
Flowmeter with the following information :
1. Type (Gear type or Roots type)
2. Fluid Name
3. Transmission Unit (In case of a flowmeter with transmitter)
4. Specify the following only when they deviate from the standard specifications.
a. Flow direction
b. Paint colour
c. Power supply
d. Cable connect standards
e. Attachment for fitting counter unit by 45°
|
国产替换KRAL Volumeter, OMG20.700144, OMG32, OMG52, OMG100, OMP20, OMP32, OMP52, AALBORG INDUSTRIES, GEA GERMANY, ALFA LAVAL
国产替换燃油流量计，总长度、法兰尺寸、流量范围、耐温、耐压、输出信号，供电电源, 防爆等级等功能参数都一致，可以完全替换。
原制造商：
--Austria, KRAL Volumeter
--AALBORG INDUSTRIES
--ALFA LAVAL
--GEA, Westfalia Separator, D-59302 Oelde, GERMANY
可完全替换口径型号MODEL/TYPE部分举例:
KRAL，OMG20.700144
KRAL，OMG20.010134
KRAL，OMG-020.CABAEA.0041
KRAL，OMG020.CABABA.0001
KRAL，OMG-20.CABABA.0001
KRAL，OMG-020.CABAEA.0041
KRAL，OMG32.700344
KRAL，OMG32.600343
KRAL，OMG32.CABAAA.0010
KRAL，OMG-032.CABAAA.0010
KRAL，OMG-032.CABABA.0002
KRAL，OMG-032.CAAABA.0002
KRAL，OMG032.CABABA.0112
KRAL，OMG032CABABA0002
KRAL，OMG-032.CABABA.0002
KRAL，OMG52.CBABX.0096
KRAL，OMG52.7010344
KRAL，OMG52.7110344
KRAL，OMG-052.CABABA.0140
KRAL，OMG100.6010643
KRAL，OMP20.IDBABB.0090
KRAL，OMP20.ICBABE.0110
KRAL，OMP-032.IABABX0016
KRAL，OMP32.EDBAEB.0138
KRAL，OMP52.4342156
KRAL，OMP-052.IDBABB.0057
AALBORG，OMG20.700144, UOD01
AALBORG，OMG20.010134
AALBORG，OMG20，7060000013，F100.1
AALBORG，OMG32.010334
AALBORG，OMG，PART NO: 7060000012
GEA，OMG20.700144，PART NO: 2020-2000-070，PART NO: 2020-2000-030
GEA，OMG32.700344，PART NO: 2020-2000-080
GEA，OMG52.7010344
ALFA LAVAL，OMG20.940144
ALFA LAVAL，OMG-020.CABABA.0001, PART NO: AG706000028
ALFA LAVAL，OMG32.940344, PART NO: 706000029
可完全替换口径型号MODEL/TYPE具体·举例:
1. KRAL
SN:----- Year: -----
OMG20.700144, K 1282 P/l
Pmax 160 bar, Tmax 150℃
6893-Lustenau, Austria, KRAL Volumeter
2.GEA
Part No. 2020-2000-030
OMG20.700144, K 1285 P/l
SN: ----- Year:-----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
3.AALBORG INDUSTRIES
SN:----- Year;-----
OMG20.700144 , K 1281 P/l
Pmax 160 bar Tmax 150℃
www.aalborg-industries.com
4.KRAL
SN:----- Year:-----
OMG20.700344, K 469.7 P/l
Pmax 160 bar Tmax 150℃
6893-Lustenau, Austria, KRAL Volumeter
5.KRAL
SN Year
OMG32.600343 K 234.6 P/l
Pmax 160 bar Tmax 100℃
6893-Lustenau, Austria, KRAL Volumeter
6.GEA
Part No. 2020-2000-040
OMG32.700344， K 469.5 P/l
SN:----- Year:-----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
7.GEA
Part No. 2020-2000-080
OMG32.700344 K 489.8 P/l
SN:----- Year:----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
8.AALBORG INDUSTRIES
SN:----- Year:----
OMG32.700344 K 488.5 P/l
Pmax 160 bar Tmax 150℃
www.aalborg-industries.com
9. KRAL
SN:----- Year:----
OMG20.700344 K 469.7 P/l
Pmax 160 bar Tmax 150℃
6893-Lustenau, Austria, KRAL Volumeter
10. KRAL
SN:----- Year:----
OMG32.600343 K 234.6 P/l
Pmax 160 bar Tmax 150℃
6893-Lustenau, Austria, KRAL Volumeter
11.GEA
Part No. 2020-2000-040
OMG32.700344 K 469.5 P/l
SN:----- Year:----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
12. GEA
Part No. 2020-2000-080
OMG32.700344, K 489.8 P/l
SN:----- Year:----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
13. AALBORG INDUSTRIES
SN:------ Year:----
OMG32.700344, K 488.5 P/l
Pmax 160 bar Tmax 150℃
www.aalborg-industries.com
14. KRAL
SN:----- Year:----
OMG20.700344, K 469.7 P/l
Pmax 160 bar Tmax 150℃
6893-Lustenau, Austria, KRAL Volumeter
15. KRAL
SN:----- Year:----
OMG32.600343 K 234.6 P/l
Pmax 160 bar Tmax 100℃
6893-Lustenau, Austria, KRAL Volumeter
16. GEA
Part No. 2020-2000-040
OMG32.700344, K 469.5 P/l
SN:----- Year:----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
17. GEA
Part No. 2020-2000-080
OMG32.700344, K 489.8 P/l
SN:----- Year:----
Pmax 160 bar Tmax 150℃
GEA, Westfalia Separator, D-59302 Oelde, GERMANY
18. AALBORG INDUSTRIES
SN :----- Year:----
OMG32.700344 K 488.5 P/l
Pmax 160 bar Tmax 150℃
www.aalborg-industries.com
19. ALFA LAVAL
PART NO: 706000029
SN :----- Year:----
OMG32.940344 K 469.8 P/l
Pmax 160 bar Tmax 150℃
Produced by KRAL AG
www.alfalaval.com
|
 |
 |
替换日本/韩国/美国/意大利等流量指示器，流量监视器，流量计, Flow Monitor, Flow Indicator, sight glass type，Sight Flow Indicator, Flapper type, Flow meter
用途Service: 防海生物装置，防海生物船舶防止海生物生长装置，防海洋生物生长系统，MGPS(Marine Growth Prevention System
型号Model: SFF系列
产品类型Product Type: C type圆形; D type方形
口径Size:
DN6
DN8
DN10
DN12
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100
DN125
DN150
DN200
DN250
最大压力Max Pressure: 1.0 MPa
最高压力Max Temperature: 120℃
流体Fluid: SEA Water
流量刻度Flow Scale: 按原厂流量范围
视窗Windows: 双视窗Double windows
接液材质Wetted Materials:
----本体材质Body & Cover & Bolt: SS304 Stainless Steel
----挡板与弹簧材质Flapper & Spring: SS304 Stainless Steel
----视镜材质Sight Glass: Tempered Glass
-----密封圈材质Gaskets: PTFE
过程连接Process Connection: 螺纹或法兰，按原厂标准
螺纹或法兰尺寸Flange Size: 按原厂尺寸
总长度Length (Face to Face): 按原厂长度
安装位置Installation Position:
----水平管道卧式安装(从前面观察)Horizontal pipe horizontal installation (See from the front)
----水平管道立式安装(从上面观察)Horizontal pipe vertical installation (See from the above)
----垂直管道(从前面观察)Vertical pipe (See from the front)
流向Flow Direction:
----Left → Right, Right → Left
----Bottom → Top, Top → Bottom
|
第一家：Type/Model: FS-0400 サイトグラス式 流量監視計Flow Monitor, Flow Indicator, sight glass type，Flow meter流量计
MAKER: 日本SHOWA INSTRUMENTINFORMATION CO.，LTD，昭和機器計装(株)，日本昭和机器计装株式会社；NIPPON FLOW CELL MFG., LTD.，日本フローセル株式会社
本体材質Body Material: 15A～100A：FCD450；125A以上: SS400
口径/呼径SIze:
Rc1/2, Rcメネジ, 面間L=120mm
Rc3/4, Rcメネジ, 面間L=120mm
25A JIS10K FF, 面間Flange to Flange=220mm
32A JIS10K FF, 面間Flange to Flange=220mm
40A JIS10K FF, 面間Flange to Flange=220mm
50A JIS10K FF, 面間Flange to Flange=220mm
65A JIS10K FF, 面間Flange to Flange=260mm
80A JIS10K FF, 面間Flange to Flange=300mm
100A JIS10K FF, 面間Flange to Flange=330mm
125A JIS10K FF, 面間Flange to Flange=380mm
150A JIS10K FF, 面間Flange to Flange=480mm
200A JIS10K FF, 面間Flange to Flange=650mm
250A JIS10K FF, 面間Flange to Flange=680mm
300A JIS10K FF, 面間Flange to Flange=720mm
第二家：MGPS Flow Indicator for OUTLET SIDE DISTRIBUTION
Type/Model: GEFDF
MAKER: 日本CONHIRA CO.LTD.，自本WASINO KIKI CO., LTD.
本体材質Body Material: FCD450
口径/呼径SIze:
DN15 JIS10K, Flange to Flange=150mm
DN20 JIS10K, Flange to Flange=150mm
DN25 JIS10K, Flange to Flange=170mm
DN32 JIS10K, Flange to Flange=200mm
DN40 JIS10K, Flange to Flange=200mm
DN50 JIS10K, Flange to Flange=220mm
第三家：
第四家：
MGPS (Marine Growth Prevention System) ECOLCELL ANTIFOULING SYSTEM ND50 FLOWMETER
MAKER: 意大利ITALY AZIEDA CHIMICA GENOVESE(ACG)
DN50, DIN PN10 RF Flange, Flange to Flange=280mm
|
 |
 |
//////////////////////////////
//////
/
///////////
///////
//////
/////////////
|
/////////////////////////
//////
/
///////////
///////
//////
/////////////
|
 |
 |
| /////////////////////////////////// |
////////////////////////////） |
 |
 |
| /////////////// |
////////// |
|
