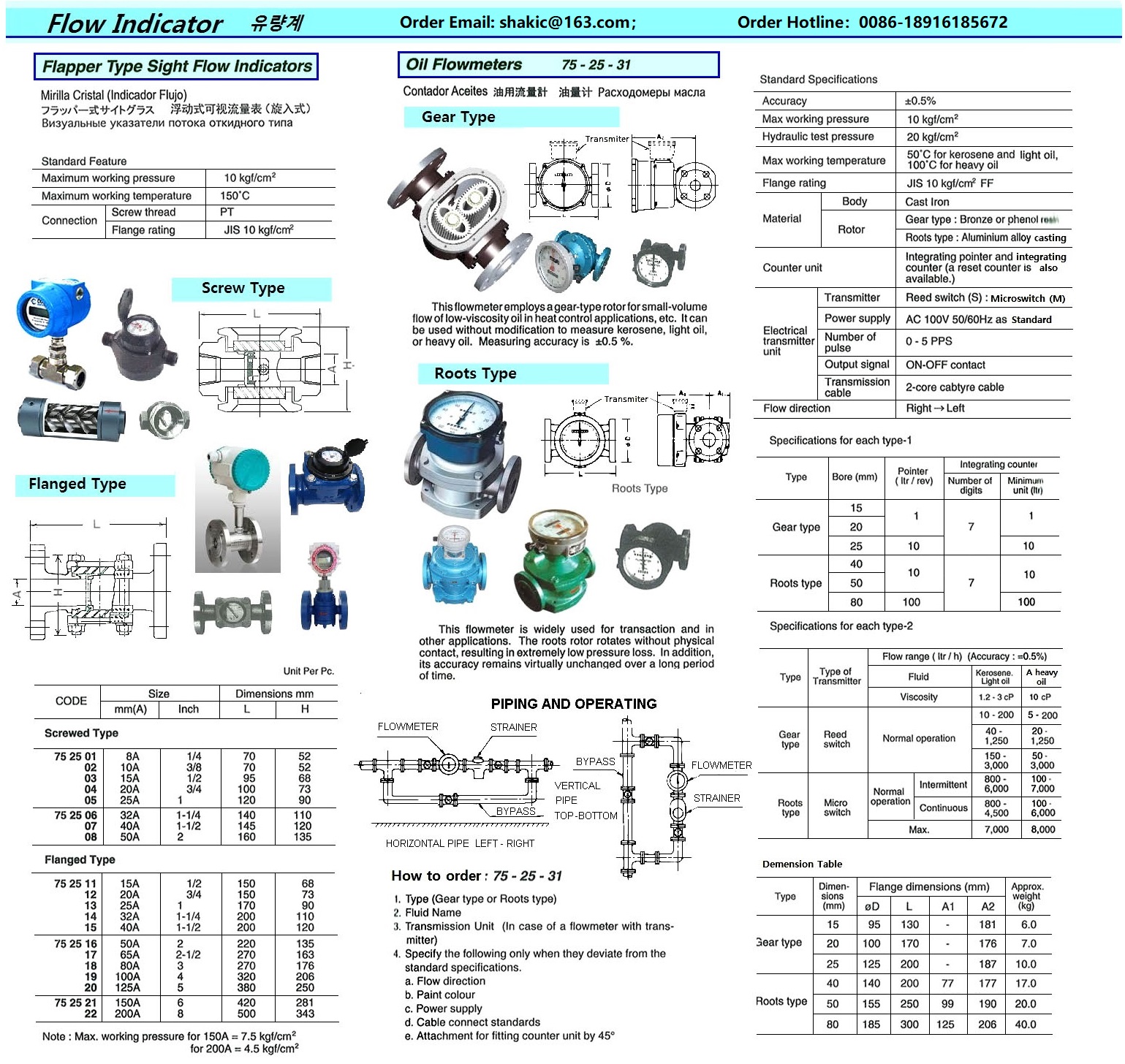

国产流量指示器Flow Indicator, IMPA代码: 752501 to 752522
Flapper Type Sight Flow Indicators，可视流量计
Mirilla Cristal (Indicador Flujo)
フラッパ一式サイトグラス, 浮动式可视流量表(旋入式), 浮動式可視流量表
浮動式可視流量表, Flapper Type Sight Flow Indicators，流量指示器
Bu3yanbHble yKa3arenM noToKa oTKAHoro TMna
Maker: Shanghai A.K. Instruments Co., LTD (SHAKIC)
Cast iron flow indicator used for the visual inspection of the level of liquid flow through pipes and valves. The indicator is comprised of a gravity loaded swing flap which is lifted when fluid flows through the line. Used in pipes where there is no back flow. Stainless steel indicators are also available upon request.
Standard Feature:
Maximum working pressure: 10 kgf/cm2
Maximum working temperature: 150°C
Connection:
--Screw thread: PT
--Flange rating: JIS 10 kgf/cm2
How to order :
CODE, Flow indicator, flapper type, cast iron, 316L SS
SCREWED or FLANGED type
NOMINAL BORE
FLOW DIRECTION: LEFT TO RIGHT (default)

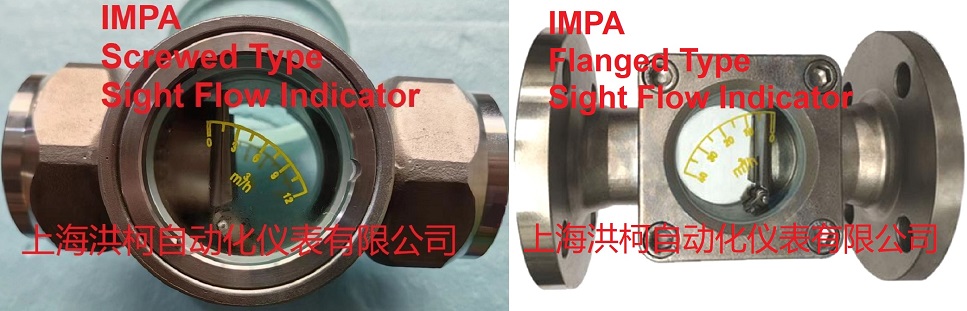

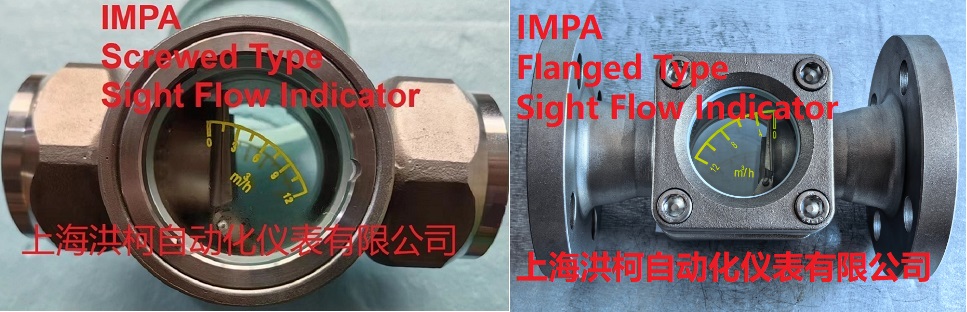

Screwed Type 浮動式可視流量表（螺紋式，螺纹式）:
总长度可定制Overall length can be customized
--IMPA: 752501, Size: 8A, 1/4 Inch, L=70mm, H=52mm
--IMPA: 752502, Size: 10A, 3/8 Inch, L=70mm, H=52mm
--IMPA: 752503, Size: 15A, 1/2 Inch, L=95mm, H=68mm
--IMPA: 752504, Size: 20A, 3/4 Inch, L=100mm, H=73mm
--IMPA: 752505, Size: 25A, 1 Inch, L=120mm, H=90mm
--IMPA: 752506, Size: 32A, 1-1/4 Inch, L=140mm, H=110mm
--IMPA: 752507, Size: 40A, 1-1/2 Inch, L=145mm, H=120mm
--IMPA: 752508, Size: 50A, 2 Inch, L=160mm, H=135mm
Flanged Type 浮動式可視流量表（法蘭式，法兰式）:
总长度可定制Overall length can be customized
--IMPA: 752511, Size: 15A, 1/2 Inch, L=150mm, H=68mm
--IMPA: 752512, Size: 20A, 3/4 Inch, L=150mm, H=73mm
--IMPA: 752513, Size: 25A, 1 Inch, L=170mm, H=90mm
--IMPA: 752514, Size: 32A, 1-1/4 Inch, L=200mm, H=110mm
--IMPA: 752515, Size: 40A, 1-1/2 Inch, L=200mm, H=120mm
--IMPA: 752516, Size: 50A, 2 Inch, L=220mm, H=135mm
--IMPA: 752517, Size: 65A, 2-1/2 Inch, L=270mm, H=163mm
--IMPA: 752518, Size: 80A, 3 Inch, L=270mm, H=176mm
--IMPA: 752519, Size: 100A, 4 Inch, L=320mm, H=206mm
--IMPA: 752520, Size: 125A, 5 Inch, L=380mm, H=250mm
--IMPA: 752521, Size: 150A, 6 Inch, L=420mm, H=281mm
--IMPA: 752522, Size: 200A, 8 Inch, L=500mm, H=343mm
Note :
--Max. working pressure for 150A =7.5 kgf/cm2
--Max. working pressure for 200A=4.5 kgf/cm2
|

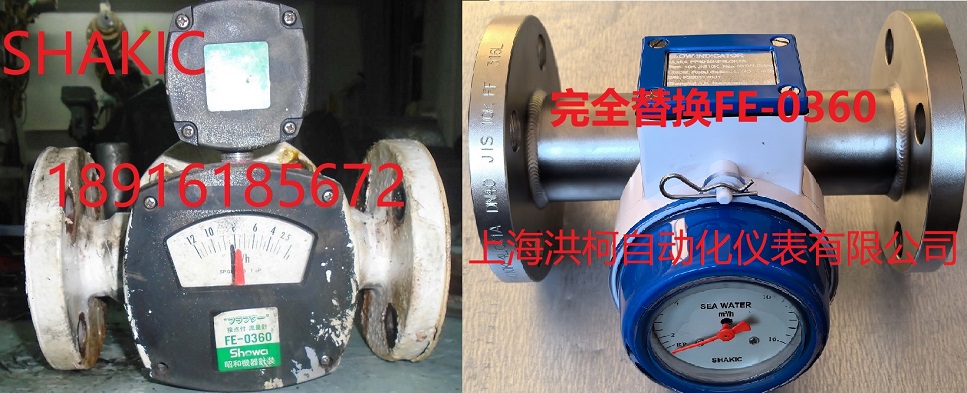

国产完全替换FE-0360，FE0360，FS-0400，流量指示器FLOW INDICATOR, FLOW INDICATOR with SWITCH, 流量开关Flow meter with switch, Flaptor Flow meter with switch, Flapper Type Area Flow meter
总长度一致，法兰标准一致，信号输出一致，安装位置和流向一致.无需更换管道，安装便捷。
MAKER:
--SHOWA INSTRUMENTINFORMATION CO.，LTD，日本昭和機器計装(株)，昭和机器计装株式会社
--NIPPON FLOW CELL，日本フローセル株式会社
--株式会社コンヒラ, CONHIRA CO., LTD, DRAW. NO. DC23-209-007 0, DC24-110-007 0, DC25-121-007 0, DC26-285-007 0
--HIKARI SANGYO CO. LTD. 日本晃産業株式会社，晃产业株式会社
SERVICE: MGPS，海洋生物付着防止装置MARINE GROWTH PREVENING SYSTEM
NAME: FLOW INDICATOR，Flapper Type Area Flow meter，Flaptor，Flow meter with switch
TYPE/Model: FE-0360, FE0360
开关类型 Switch Type: Self-holding Reed Switch type
触点容量Contact Rating: 220V AC/DC Max, 0.5A AC/DC Max, 50VA Max
本体材質Body Material: FCD450, 316L SS
呼径SIZE:
--32A JIS10K FLange, L=220mm,H=130mm
--40A JIS10K FLange, L=220mm,H=140mm
--40A JIS5K FLange, L=220mm,H=140mm
--50A JIS10K FLange, L=220mm,H=150mm
-- 65A JIS10K FLange, L=260mm,H=170mm
~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~ ~~~~~ ~~~~~ ~~~~~~
~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~~ ~~~~ ~~~~~ ~~~~~ ~~~~~~

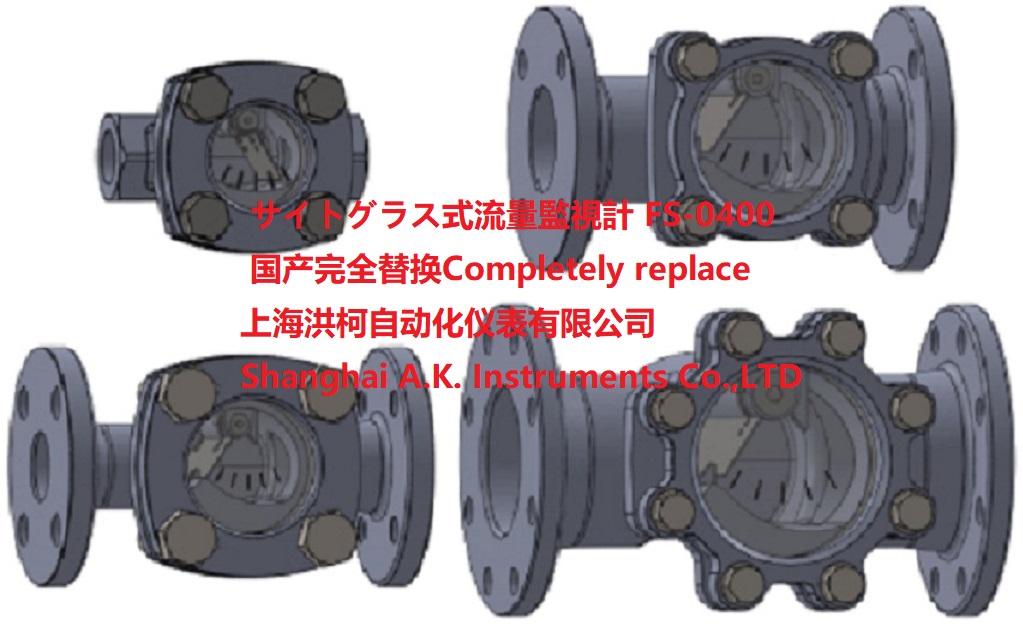

国产完全替换 サイトグラス式流量監視計 FS-0400，Sight glass type flow meter，Flapper type Flowmeter，Flapper type area flowmeter Flaptor，Flow Monitor, Flow Indicator
Type/Model: FS-0400
MAKER:
--日本SHOWA INSTRUMENTINFORMATION CO.,LTD，昭和機器計装(株)，日本昭和机器计装株式会社；
--NIPPON FLOW CELL MFG., LTD.，日本フローセル株式会社;
--Daiki Engineering Co.,LTD, HYCHLORATOR, model: 6LS-200, Marine Growth Prevention System; Drawing No. 31218
Maximum operating pressure: 1MPa
Maximum operating temperature: 120°C
本体材質Body Material: 15A～100A：FC200、FCD450；125A以上: SS400
要部材質Flapper Material: SUS304 stainless steel
口径/呼径SIze:
--Size: 100A, L=330mm, A=244mm, F=216mm, E=130mm, D=210mm, C=175mm, t=24mm, n-Φh=8-19mm, JIS10K FF;
--Size: 80A, L=300mm, A=181mm, F=186mm, E=105mm, D=185mm, C=150mm, t=22mm, n-Φh=8-19mm, JIS10K FF;
--Size: 65A, L=260mm, A=171mm, F=186mm, E=105mm, D=175mm, C=140mm, t=22mm, n-Φh=4-19mm, JIS10K FF;
--Size: 50A, L=220mm, A=119mm, F=130mm, E=80mm, D=155mm, C=120mm, t=20mm, n-Φh=4-19mm, JIS10K FF;
--Size: 40A, L=220mm, A=108mm, F=130mm, E=80mm, D=140mm, C=105mm, t=20mm, n-Φh=4-19mm, JIS10K FF;
--Size: 32A, L=220mm, A=90mm, F=90mm, E=50mm, D=135mm, C=100mm, t=20mm, n-Φh=4-19mm, JIS10K FF;
--Size: 25A, L=220mm, A=90mm, F=90mm, E=50mm, D=125mm, C=90mm, t=18mm, n-Φh=4-19mm, JIS10K FF;
--Size: 20A, L=120mm, A=71mm, F=90mm, E=50mm, Rc3/4 thread;
--Size: 15A, L=120mm, A=71mm, F=90mm, E=50mm, Rc1/2 thread;
|
 |
 |

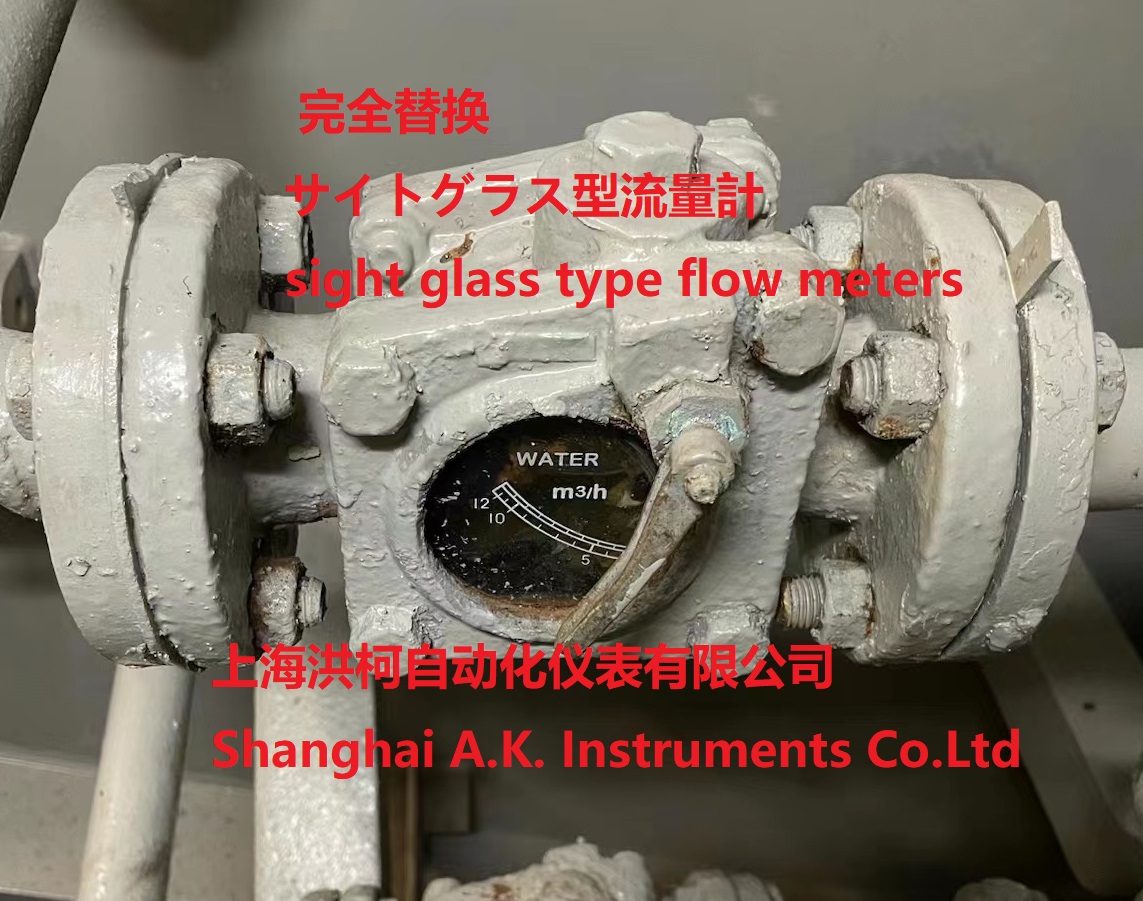

国产完全替换TAIYO VALVE MFG. CO., LTD, CLEAR FLOW GAGE, サイトグラス型流量計Sight glass type flow meter, MGPS Flow Indicator, SEA WATER
MAKER: 大洋バルブ製作所 TAIYO VALVE MFG. CO., LTD.
MODEL: FCD-FO-REM 15-125A FLOW GAGE; FCD-FO-P 15-125A FLOW GAGE; FCD-FO-P 150-400A FLOW GAGE;
材質Body Material: FCD450
口径/呼径SIze: JIS B2239 10K FF FLANGE
--15A, 1/2 B, d=20, LENGTH=156mm, B=145, H=68, D(OD)=95, C(PCD)=70, n-Φh=4-Φ15
-- 20A, 3/4 B, d=20, LENGTH=160mm, B=145, H=68, D(OD)=100, C(PCD)=75, n-Φh=4-Φ15
--25A, 1 B, d=25, LENGTH=190mm, B=151, H=72, D(OD)=125, C(PCD)=90, n-Φh=4-Φ19
-- 32A, 1-1/4 B, d=38, LENGTH=210mm, B=178, H=87, D(OD)=135, C(PCD)=100, n-Φh=4-Φ19
--40A, 1-1/2 B, d=38, LENGTH=210mm, B=178, H=87, D(OD)=140, C(PCD)=105, n-Φh=4-Φ19, 2-12m3/h
--50A, 2 B, d=50, LENGTH=230mm, B=218, H=95, D(OD)=155, C(PCD)=120, n-Φh=4-Φ19
--65A, 2-1/2 B, d=65, LENGTH=280mm, B=238, H=107, D(OD)=175, C(PCD)=140, n-Φh=4-Φ19
-- 80A, 3 B, d=80, LENGTH=310mm, B=258, H=120, D(OD)=185, C(PCD)=150, n-Φh=8-Φ19
--100A, 4 B, d=100, LENGTH=340mm, B=298, H=131, D(OD)=210, C(PCD)=175, n-Φh=8-Φ19
--125A, 5 B, d=125, LENGTH=360mm, B=323, H=143, D(OD)=250, C(PCD)=210, n-Φh=8-Φ23
--150A, d=150, LENGTH=370mm, B=352, H=175, D(OD)=280, C(PCD)=240, n-Φh=8-Φ23
--200A, d=200, LENGTH=400mm, B=425, H=205, D(OD)=330, C(PCD)=290, n-Φh=12-Φ23
-- 250A, d=250, LENGTH=450mm, B=501, H=249, D(OD)=400, C(PCD)=355, n-Φh=12-Φ25
--300A, d=300, LENGTH=500mm, B=609, H=319, D(OD)=445, C(PCD)=400, n-Φh=16-Φ25
--350A, d=350, LENGTH=560mm, B=653, H=343, D(OD)=490, C(PCD)=445, n-Φh=16-Φ25
--400A, d=400, LENGTH=640mm, B=705, H=371, D(OD)=560, C(PCD)=510, n-Φh=16-Φ27
MODEL: FCD-SO-REM 15-40A FLOW GAGE; FCD-SO-P 15-40A FLOW GAGE;
材質Body Material: FCD450
口径/呼径SIze: Screw (Rc), JISB0203
--15A, 1/2 B, d=Rc 1/2, LENGTH=120mm, B=145, H1=38, H2=68
--20A, 3/4 B, d=Rc 3/4, LENGTH=120mm, B=145, H1=38, H2=68
-- 25A, 1 B, d=Rc 1, LENGTH=140mm, B=151, H1=42, H2=72
--32A, 1-1/4 B, d=Rc 1-1/4, LENGTH=210mm, B=178, H1=58, H2=87
--40A, 1-1/2 B, d=Rc 1-1/2, LENGTH=210mm, B=178, H1=58, H2=87
|

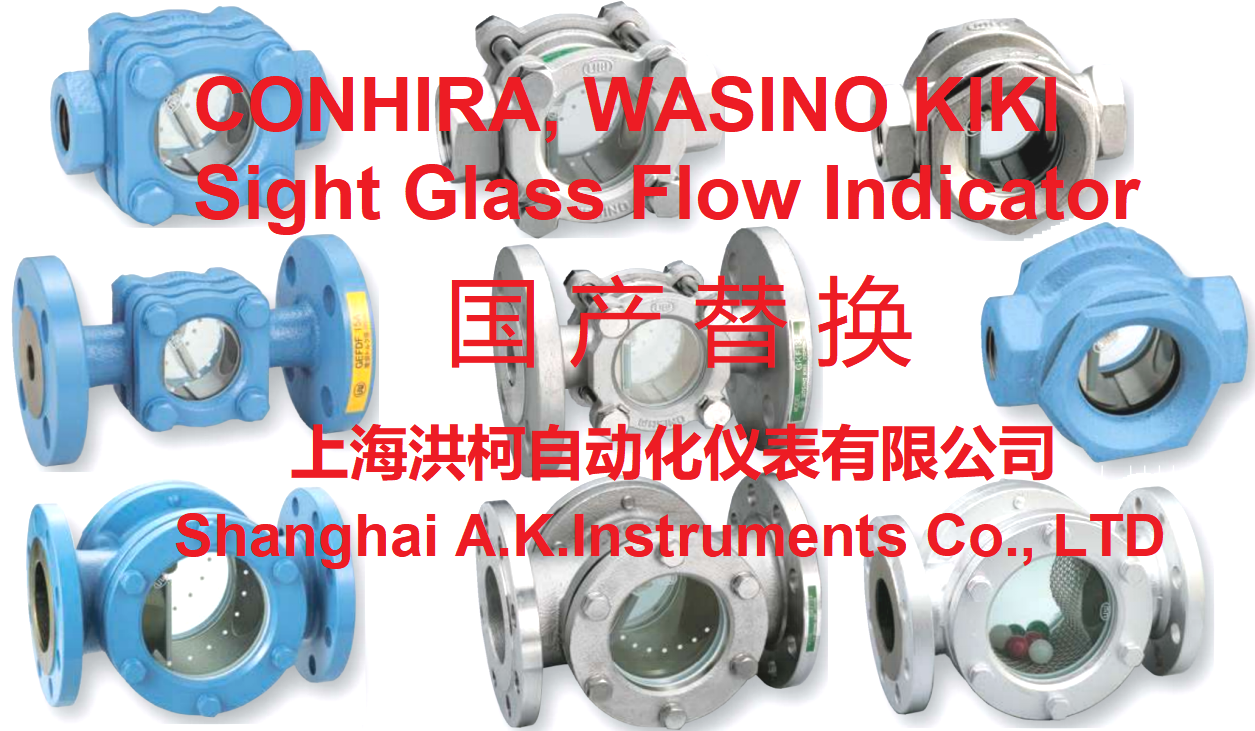

国产替换CONHIRA CO., LTD, WASINO KIKI CO., LTD, Sight glass Flow Indicator, flow meter,
原制造商MAKER:
----CONHIRA CO., LTD.
----WASINO KIKI CO., LTD.
MODEL: GKF13S, GKF14S, Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--8A(1/4), L=70mm, H=45mm
--10A(3/8), L=70mm, H=45mm
--15A(1/2), L=95mm, H=61mm
--20A(3/4), L=100mm, H=66mm
--25A(1), L=120mm, H=82mm
--32A(1-1/4), L=140mm, H=98mm
--40A(1-1/2), L=145mm, H=108mm
--50A(2), L=160mm, H=123mm
本体質材Body Material:
--GKF13S: SCS13A(ステンレス鋳鋼Stainless Steel Cast)
--GKF14S: SCS14A(ステンレス鋳鋼Stainless Steel Cast)
接続Connection: ねじ込みThreaded Rc (PT)
最高使用压力Maximum Operating Pressure: 0.98MPa-G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
※8A、10Aはガラス目盛はありません. 8A and 10A do not have glass scales.
MODEL: GKF13F, GKF14F, Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=130mm, H=61mm
--20A(3/4), L=130mm, H=66mm
--25A(1), L=150mm, H=82mm
--32A(1-1/4), L=170mm, H=98mm
--40A(1-1/2), L=170mm, H=108mm
--50A(2), L=200mm, H=123mm
--65A(2-1/2), L=230mm, H=155mm
--80A(3), L=250mm, H=185mm
--100A(4), L=280mm, H=210mm
--125A(5), L=290mm, H=240mm
--150A(6), L=330mm, H=280mm
--200A(8), L=390mm, H=355mm
本体質材Body Material:
--GKF13F: SCS13A(ステンレス鋳鋼Stainless Steel Cast)
--GKF14F: SCS14A(ステンレス鋳鋼Stainless Steel Cast)
接続Connection: フランジ形Flanged type (JIS10K-RF)
最高使用压力Maximum Operating Pressure: 0.98MPa-G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
MODEL: GKF20F13F Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=150mm, H=78mm
--20A(3/4), L=150mm, H=78mm
--25A(1), L=170mm, H=86mm
--32A(1-1/4), L=200mm, H=114mm
--40A(1-1/2), L=200mm, H=114mm
--50A(2), L=220mm, H=134mm
本体質材Body Material: SCS13A(ステンレス鋳鋼Stainless Steel Cast)
接続Connection: フランジ形Flanged type (JIS10K-RF)
最高使用压力Maximum Operating Pressure: 0.98MPa-G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
MODEL: GKF30F13F Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=150mm, H=86mm
--20A(3/4), L=150mm, H=86mm
--25A(1), L=175mm, H=94mm
--32A(1-1/4), L=210mm, H=124mm
--40A(1-1/2), L=210mm, H=124mm
--50A(2), L=225mm, H=148mm
本体質材Body Material: SCS13A(ステンレス鋳鋼Stainless Steel Cast)
接続Connection: フランジ形Flanged type (JIS30K-RF)
最高使用压力Maximum Operating Pressure: 1.96MPa.G(20kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
MODEL: GFAF Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=150mm, H=66mm
--20A(3/4), L=150mm, H=71mm
--25A(1), L=170mm, H=87mm
--32A(1-1/4), L=200mm, H=113mm
--40A(1-1/2), L=200mm, H=118mm
--50A(2), L=220mm, H=138mm
--65A(2-1/2), L=270mm, H=162mm
--80A(3), L=270mm, H=178mm
--100A(4), L=320mm, H=210mm
--125A(5), L=380mm, H=263mm
--150A(6), L=420mm, H=288mm
--200A(8), L=500mm, H=350mm
本体質材Body Material:FC200(鋳鉄)cast iron
接続Connection: フランジ形Flanged type (JIS10K-FF)
最高使用压力Maximum Operating Pressure: 0.98MPa.G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
※最高使用力は、150A=0.74MPa·G(7.5kgf/cm2.G), 200A=0.44MPa·G(4.5kgf/cm2.G)となります。
※125A(5B)以上は、ガラス目盛はありません。
MODEL: GEFDF Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=150mm, H=65mm
--20A(3/4), L=150mm, H=70mm
--25A(1), L=170mm, H=84mm
--32A(1-1/4), L=200mm, H=108mm
--40A(1-1/2), L=200mm, H=116mm
--50A(2), L=220mm, H=134mm
--50A(2), L=220mm, H=138mm
--65A(2-1/2), L=270mm, H=162mm
--80A(3), L=270mm, H=178mm
--100A(4), L=320mm, H=210mm
--125A(5), L=380mm, H=263mm
--150A(6), L=420mm, H=288mm
--200A(8), L=500mm, H=350mm
本体質材Body Material: FCD450 (Ductile Cast Iron)
接続Connection: フランジ形Flanged type (JIS10K-RF)
最高使用压力Maximum Operating Pressure: 0.98MPa.G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
※最高使用力は、150A=0.74MPa·G(7.5kgf/cmi·G)200A=0.44MPa·G(4.5kgf/cmi·G)となります。
※125A(5B)以上は、ガラス目盛はありません。
MODEL: GEFDS Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--8A(1/4), L=70mm, H=52mm
--10A(3/8), L=70mm, H=52mm
--15A(1/2), L=95mm, H=65mm
--20A(3/4), L=100mm, H=70mm
--25A(1), L=120mm, H=84mm
--32A(1-1/4), L=140mm, H=108mm
--40A(1-1/2), L=145mm, H=116mm
--50A(2), L=160mm, H=134mm
本体質材Body Material: FCD450 (Ductile Cast Iron)
接続Connection: ねじ込みThreaded Rc (PT)
最高使用压力Maximum Operating Pressure: 0.98MPa-G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
※8A、10Aはガラス目盛はありません. 8A and 10A do not have glass scales.
MODEL: GK20FPH2F Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=150mm, H=78mm
--20A(3/4), L=150mm, H=78mm
--25A(1), L=170mm, H=86mm
--32A(1-1/4), L=200mm, H=114mm
--40A(1-1/2), L=200mm, H=114mm
--50A(2), L=220mm, H=134mm
--65A(2-1/2), L=230mm, H=155mm
--80A(3), L=250mm, H=185mm
--100A(4), L=280mm, H=210mm
--125A(5), L=310mm, H=240mm
--150A(6), L=350mm, H=280mm
本体質材Body Material: SCPH2鋳鋼Stainless Steel Cast)
接続Connection: フランジ形Flanged type (JIS10K-RF)
最高使用压力Maximum Operating Pressure: 0.98MPa-G(10kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
MODEL: GK30FPH2F Flapper-type sight glass flow indicator, フラッパー式サイトグラス流量計, FLOW METER, FLOWMETERS
Dimension Tableサイズ表:
呼径Nominal Diameter:
--15A(1/2), L=150mm, H=86mm
--20A(3/4), L=150mm, H=86mm
--25A(1), L=175mm, H=94mm
--32A(1-1/4), L=210mm, H=124mm
--40A(1-1/2), L=210mm, H=124mm
--50A(2), L=225mm, H=148mm
本体質材Body Material: SCPH2鋳鋼Stainless Steel Cast)
接続Connection: フランジ形Flanged type (JIS30K-RF)
最高使用压力Maximum Operating Pressure: 1.96MPa-G(20kgf/cm2.G)
最高使用温度Maximum Operating Temperature: 150℃
|
 |
 |

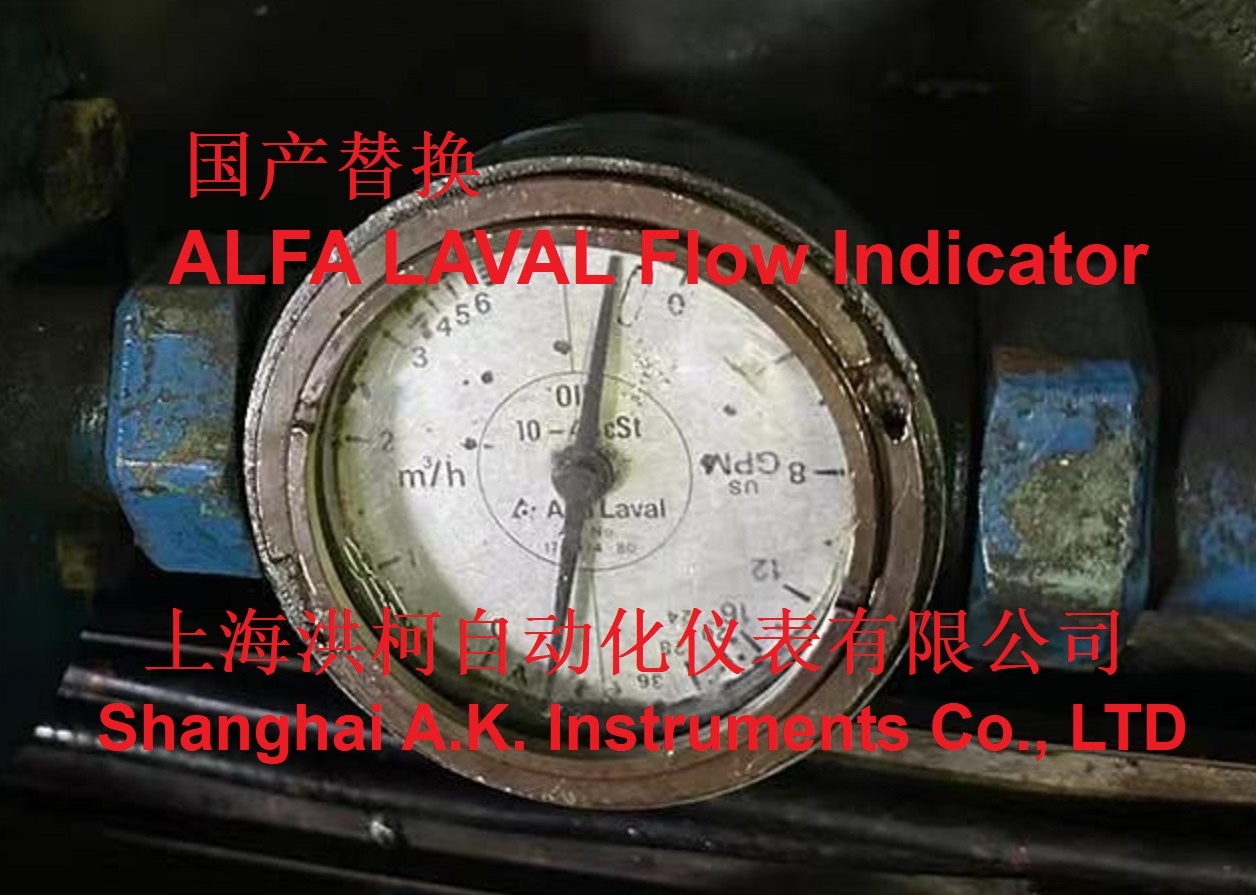

国产替换ALFA LAVAL Flow Indicator, Oil Flow Indicator, Water Flow Indicator, Flow Meter, Flowmeter.
Model: Model: SFC-BLP40G
国产替换件，总长度，连接螺纹，耐温，耐压，流量范围等功能参数都一致，可以完全替换。
原制造商: ALFA LAVAL
Equipment: H.F.O PUREFIER
Spare part Name: Flow Indicator
Media:
--1761974-80: Oil, 0-8m3/h, 10-48cst, max. 110℃ (0-36 US GPM)
--1761974-82: Water, 0-12m3/h
Max. operating pressure: 0.6 MPa (6 bar)
Mounting style: Any position
Accuracy (full scale): +15%
Flow Direction: RIGHT TO LEFT
Process Connection: G 1-1/2
Overall Length: 130mm
|
第四家：
MGPS (Marine Growth Prevention System) ECOLCELL ANTIFOULING SYSTEM ND50 FLOWMETER
MAKER: 意大利ITALY AZIEDA CHIMICA GENOVESE(ACG)
DN50, DIN PN10 RF Flange, Flange to Flange=280mm
/
///////////
///////
//////
/////////////
|
 |
 |
| /////////////////////////////////// |
////////////////////////////） |
 |
 |
| /////////////// |
////////// |
|
